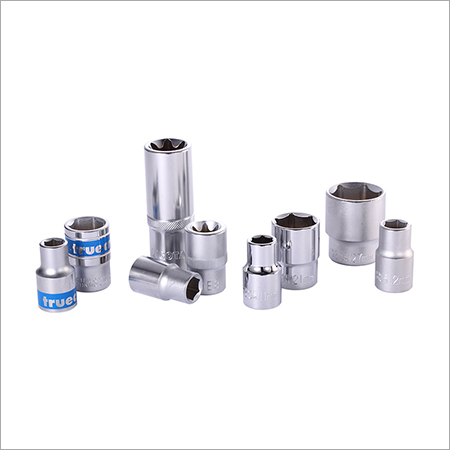

1 4 Dr socket
Product Code : 01
Product Description
Technical Specifications
| SIZE | DI ( mm ) | D2 ( mm ) | T ( mm ) | L ( mm ) | W ( g ) | |
|---|---|---|---|---|---|---|
| 4 | 6.8 | 12 | 5 | 25 | 10 | |
| 4.5 | 7.1 | 12 | 5 | 25 | 10 | |
| 5 | 7.8 | 12 | 5 | 25 | 10 | |
| 5.5 | 8.3 | 12 | 5 | 25 | 10 | |
| 6 | 9.1 | 12 | 5 | 25 | 10 | |
| 7 | 10.3 | 12 | 5 | 25 | 10 | |
| 8 | 11.5 | 12 | 5 | 25 | 15 |
| 9 | 13 | 12 | 8 | 25 | 15 |
| 10 | 14 | 12 | 8 | 25 | 15 |
| 11 | 16 | 13 | 8 | 25 | 20 |
| 12 | 17 | 14 | 8 | 25 | 25 |
| 13 | 18 | 15 | 10 | 25 | 25 |
| 14 | 20 | 16 | 10 | 25 | 35 |
| SIZE | DI (mm) | D2 (mm) | T ( mm ) | L ( mm ) | W ( g ) |
|---|---|---|---|---|---|
| 5 / 32 | 6.8 | 12 | 5 | 25 | 10 |
| 3 / 16 | 7.8 | 12 | 5 | 25 | 10 |
| 7 / 32 | 8.3 | 12 | 5 | 25 | 10 |
| 1 / 4 | 9.1 | 12 | 5 | 25 | 10 |
| 9 / 32 | 10.3 | 12 | 5 | 25 | 10 |
| 5 / 16 | 11.5 | 12 | 5 | 25 | 15 |
| 11 / 32 | 13 | 12 | 8 | 25 | 15 |
| 3 / 8 | 14 | 12 | 8 | 25 | 15 |
| 7 / 16 | 16 | 13 | 8 | 25 | 15 |
| 1 / 2 | 18 | 15 | 10 | 25 | 25 |
| 9 / 16 | 20 | 16 | 10 | 25 | 35 |
